I'm always looking for data from unlikely sources, especially sources that are close to my own bizarre (and predictable) interests. Anyone who grew up learning (or still plays) guitar at one point or another has probably used tablature at one time or another. From the old Cherry Hill tab books of our favorite albums and artists, to the internet age where tens of thousands of plain-text format tabs because available all over the place (of varying levels of correctness at times). I've been playing off and on for the past 21 years - more "on" lately than any time in recent memory. So, I had an idea. What if I were to script out a way to crunch through an old school tab text file, split it up in a usable / logical way, and insert it all into a database so I can analyze and display it later via different methods. What would the data tell me? [unordered_list style="bullet"]

• What if I could compile 100s of these files in this way?
• What could I do with the data once it was transformed?
• Would anyone even give a shit?

[/unordered_list]

Well, I've taken the first step - both in the CRUNCHING side and on the VISUALIZING side.

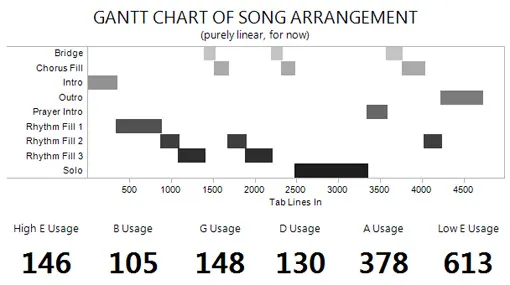

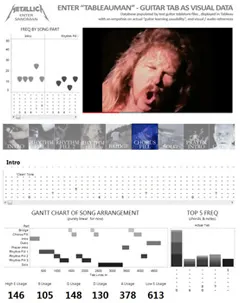

First, the end product - we can save the technical shit for AFTER. As you can see from the shot above. I took a (mostly correct) guitar tab for Metallica's Enter Sandman from ultimate-guitar.com - crunched it, note-for-note, into a database table and built a "analytic report" (using the term very loosely) out of it using Tableau Public. #### Link: Learning Enter Sandman with Visual Analytics Now, on to the "how"... If you look at my source tab, it's not that straightforward for computer reading with all the literal "3x", "12x" etc. I had to streamline it for line-by-line (and col-by-col) machine reading. You can see the original tab I started with here.

My "machine-friendly streamlined" version

[cc lang="text"] ?Metallica|Enter Sandman|The Black Album|http://tabs.ultimate-guitar.com/m/metallica/enter_sandman_tab.htm +01 Intro: #| 1|------------------------------------------------------------------------------------------------------------------------------------------------------------------------ 2|------------------------------------------------------------------------------------------------------------------------------------------------------------------------ 3|------------------------------------------------------------------------------------------------------------------------------------------------------------------------ 4|------------5---------------------------5---------------------------5---------------------------5---------------------------5---------------------------5--------------- 5|--------7---------------7-----------7---------------7-----------7---------------7-----------7---------------7-----------7---------------7-----------7---------------7--- 6|----0-----------6---5-----------0-----------6---5-----------0-----------6---5-----------0-----------6---5-----------0-----------6---5-----------0-----------6---5------- #| 1|------------------------------------------------------------------------------------------------------------------------------------------------------------------------ 2|------------------------------------------------------------------------------------------------------------------------------------------------------------------------ 3|------------------------------------------------------------------------------------------------------------------------------------------------------------------------ 4|------------5---------------------------5---------------------------5---------------------------5---------------------------5---------------------------5--------------- 5|--------7---------------7-----------7---------------7-----------7---------------7-----------7---------------7-----------7---------------7-----------7---------------7--- 6|----0-----------6---5-----------0-----------6---5-----------0-----------6---5-----------0-----------6---5-----------0-----------6---5-----------0-----------6---5------- +02 Rhythm Fill 1: #| PM------------------- sl PM----------------------- sl PM----------------------- sl PM----------------------- sl PM--- PM------- P PM--- PM------- P PM--- PM------- P PM--- PM------- P 1|---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 2|---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 3|---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 4|---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 5|--2---------------------------/7------------------------------/7--------------------------------/7---------------------------------/7-----------7------------------3\2--------7------------------3\2--------7------------------3\2--------7------------------3\2 6|--0---0---0---0---0---0---0--------0---0---0---0---0---0---0---------0---0---0---0---0---0---0----------0---0---0---0---0---0---0-------0---0------6---0---0---0---1\00---0------6---0---0---0---1\00---0------6---0---0---0---1\00---0------6---0---0---0---1\0 #|PM--- PM--- P PM--- PM--- P PM--- PM--- P PM--- PM--- P PM--- PM--- P PM--- PM--- P PM--- PM--- P PM--- PM--- P 1|-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 2|-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 3|-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 4|-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 5|--------7-------------------3\2-----------7-------------------3\2-----------7-------------------3\2-----------7-------------------3\2-----------7-------------------3\2-----------7-------------------3\2-----------7-------------------3\2-----------7-------------------3\2--- 6|0---0-------6---5---0---0---1\0---0---0-------6---5---0---0---1\0---0---0-------6---5---0---0---1\0---0---0-------6---5---0---0---1\0---0---0-------6---5---0---0---1\0---0---0-------6---5---0---0---1\0---0---0-------6---5---0---0---1\0---0---0-------6---5---0---0---1\0--- +03 Rhythm Fill 2: #| sl V sl V sl V PM------------------- sl V sl V sl V PM------------------- 1|-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 2|-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 3|-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 4|-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 5|--2---2----/7-------------2---2----/7-------------2---2----/7--------------5-------5-------4---5---4--------2---2----/7-------------2---2----/7-------------2---2----/7--------------5-------5-------4---5---4------ 6|--0---0---------6---5-----0---0---------6---5-----0---0---------6---5------3---0---3---0---2---3---2--------0---0---------6---5-----0---0---------6---5-----0---0---------6---5------3---0---3---0---2---3---2------ +04 Rhythm Fill 3: #| PM------------------- P PM------------------------ P PM----------------------- PM------------ 1|-------------------------------------------------------------------------------------------------------------------------------------------------------- 2|-------------------------------------------------------------------------------------------------------------------------------------------------------- 3|-------------------------------------------------------------------------------------------------------------------------------------------------------- 4|-------------------------------------------------------------------------------------------------------------------------------------------------------- 5|--2----------------------------3\2-------------------------------3\2-----------------------------------------5-------5-------4---5---4------------------ 6|--0---0---0---0---0---0---0----1\0---0---0---0---0---0---0---0---1\0----------0---0---0---0---0---0---0------3---0---3---0---2---3---2------------------ #| PM------------------- P PM------------------------ P PM----------------------- PM------------ 1|-------------------------------------------------------------------------------------------------------------------------------------------------------- 2|-------------------------------------------------------------------------------------------------------------------------------------------------------- 3|-------------------------------------------------------------------------------------------------------------------------------------------------------- 4|-------------------------------------------------------------------------------------------------------------------------------------------------------- 5|--2----------------------------3\2-------------------------------3\2-----------------------------------------5-------5-------4---5---4------------------ 6|--0---0---0---0---0---0---0----1\0---0---0---0---0---0---0---0---1\0----------0---0---0---0---0---0---0------3---0---3---0---2---3---2------------------ +05 Bridge: #| PM--------------------------- 1|------------------------------------------------------------------------------------------------------------------------ 2|------------------------------------------------------------------------------------------------------------------------ 3|---------2---------------------2---------------------2------------------------------------------------------------------ 4|-----4---------------------4---------------------4---------------------------------------------------------------------- 5|-------------3---2-----------------3---2-----------------3---2-------4---4---4---4---4---2---3---4---------------------- 6|--2---------------------2---------------------2----------------------2---2---2---2---2---0---1---2---------------------- +06 Chorus Fill: #| PM------------ 1|---------------------------------------------------------------------------- 2|---------------------------------------------------------------------------- 3|----------------------------------------------------------------2----------- 4|------5---4---------5---4---------5---4---------5---2---5---2-------2------- 5|--4---3---2-----4---3---2-----4---3---2----2-------------------------------- 6|--2-------------2-------------2------------0-------------------------------- #| PM----------- PM----------- 1|---------------------------------------------------------------------------- 2|---------------------------------------------------------------------------- 3|------------------------------------2--------------------------------------- 4|------5---4---------5---2---5---2-------2----------------------------------- 5|--4---3---2-----2----------------------------5-------5-------4---5---5------ 6|--2-------------0----------------------------3---0---3---0---2---3---3------ +07 Rhythm Fill 2: #| sl V sl V sl V PM------------------- sl V sl V sl V PM------------------- 1|-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 2|-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 3|-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 4|-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 5|--2---2----/7-------------2---2----/7-------------2---2----/7--------------5-------5-------4---5---4--------2---2----/7-------------2---2----/7-------------2---2----/7--------------5-------5-------4---5---4------ 6|--0---0---------6---5-----0---0---------6---5-----0---0---------6---5------3---0---3---0---2---3---2--------0---0---------6---5-----0---0---------6---5-----0---0---------6---5------3---0---3---0---2---3---2------ +08 Rhythm Fill 3: #| PM------------------- P PM------------------------ P PM----------------------- PM------------ 1|-------------------------------------------------------------------------------------------------------------------------------------------------------- 2|-------------------------------------------------------------------------------------------------------------------------------------------------------- 3|-------------------------------------------------------------------------------------------------------------------------------------------------------- 4|-------------------------------------------------------------------------------------------------------------------------------------------------------- 5|--2----------------------------3\2-------------------------------3\2-----------------------------------------5-------5-------4---5---4------------------ 6|--0---0---0---0---0---0---0----1\0---0---0---0---0---0---0---0---1\0----------0---0---0---0---0---0---0------3---0---3---0---2---3---2------------------ #| PM------------------- P PM------------------------ P PM----------------------- PM------------ 1|-------------------------------------------------------------------------------------------------------------------------------------------------------- 2|-------------------------------------------------------------------------------------------------------------------------------------------------------- 3|-------------------------------------------------------------------------------------------------------------------------------------------------------- 4|-------------------------------------------------------------------------------------------------------------------------------------------------------- 5|--2----------------------------3\2-------------------------------3\2-----------------------------------------5-------5-------4---5---4------------------ 6|--0---0---0---0---0---0---0----1\0---0---0---0---0---0---0---0---1\0----------0---0---0---0---0---0---0------3---0---3---0---2---3---2------------------ +09 Bridge: #| PM--------------------------- 1|------------------------------------------------------------------------------------------------------------------------ 2|------------------------------------------------------------------------------------------------------------------------ 3|---------2---------------------2---------------------2------------------------------------------------------------------ 4|-----4---------------------4---------------------4---------------------------------------------------------------------- 5|-------------3---2-----------------3---2-----------------3---2-------4---4---4---4---4---2---3---4---------------------- 6|--2---------------------2---------------------2----------------------2---2---2---2---2---0---1---2---------------------- +10 Chorus Fill: #| PM------------ 1|---------------------------------------------------------------------------- 2|---------------------------------------------------------------------------- 3|----------------------------------------------------------------2----------- 4|------5---4---------5---4---------5---4---------5---2---5---2-------2------- 5|--4---3---2-----4---3---2-----4---3---2----2-------------------------------- 6|--2-------------2-------------2------------0-------------------------------- #| PM----------- PM----------- 1|---------------------------------------------------------------------------- 2|---------------------------------------------------------------------------- 3|------------------------------------2--------------------------------------- 4|------5---4---------5---2---5---2-------2----------------------------------- 5|--4---3---2-----2----------------------------5-------5-------4---5---5------ 6|--2-------------0----------------------------3---0---3---0---2---3---3------ +11 Solo #| 1|------------------------------------------------------------- 2|-15-15-15-12----12---------------12-12----15b17-15b17-(15)-- 3|-------------14-----14b16---(14)-------14-------------------- 4|------------------------------------------------------------- 5|------------------------------------------------------------- 6|------------------------------------------------------------- #| 1|-------------------------------------------------- 2|-------------------------------------------------- 3|-12/14-14-14-14\12-12-12-12/14-14-14-14\12-12-12-- 4|-------------------------------------------------- 5|-------------------------------------------------- 6|-------------------------------------------------- #| 1|------------------------------------------ 2|------------------------------------------ 3|-14p12------------------------------------ 4|-------14--14p12-------------------------- 5|-----------------14--14p12\10------------- 6|------------------------------12-~-(12)-- #| 1|-------12-12-12-------12-12-12-------12-12-12-------12-12-12-- 2|-15b17----------15b17----------15b17----------15b17----------- 3|-------------------------------------------------------------- 4|-------------------------------------------------------------- 5|-------------------------------------------------------------- 6|-------------------------------------------------------------- #| 1|-------12-12-12h15p12-12h15p12-12h15p12-12-15-12-12-14-14-- 2|-15b17----------------------------------------------------- 3|----------------------------------------------------------- 4|----------------------------------------------------------- 5|----------------------------------------------------------- 6|----------------------------------------------------------- #| 1|-17p14----17p14----17p14-19p15----19p15----19p15-- 2|-------15-------15-------------17-------17-------- 3|-------------------------------------------------- 4|-------------------------------------------------- 5|-------------------------------------------------- 6|-------------------------------------------------- #| 1|-21p17----21p17----21p17----22b24-(22)------------------------- 2|-------17-------17-------17-------------9b10---(9)---9b10---9--- 3|----------------------------------------9b11---(9)---9b11---9--- 4|---------------------------------------------------------------- 5|---------------------------------------------------------------- 6|---------------------------------------------------------------- #| 1|------------------------------------------------------------------- 2|-9b10--9b10-----------------10---(10)----10-8-7---8\7---7---------- 3|-9b11--9b11--7--9--------7----------------------9-----9---9-7---7-- 4|--------------------7h9---------------------------------------9---- 5|------------------------------------------------------------------- 6|------------------------------------------------------------------- #| 1|------------------------------------------------------------------ 2|------------------------------------------------------------------ 3|-9p7---------------------------16b18-14-----14-16b18--14------14-- 4|-----9p7---7-9-7------------------------16----------------16------ 5|---------9-------9-8-7-------------------------------------------- 6|-----------------------10-7-------------------------------------- #| 1|------------------------------------ 2|------------------------------------ 3|-16b18-14----14-16b18-14--------14-- 4|----------16-------------16--16----- 5|------------------------------------ 6|------------------------------------ #| 1|----------------------------------------------------------------------- 2|-------17-------17------------17--------------------------------------- 3|-16b18----16b18----16b18---------16b18---(16)-\1/-\1/-\1/-\1/-\1/-\1/-- 4|----------------------------------------------------------------------- 5|----------------------------------------------accentuate-w/bar--------- 6|----------------------------------------------------------------------- #| 1|-21p17----21p17----21p17----21p17----21p17----21p17----- 2|-------17-------17-------17-------17-------17-------17-- 3|-------------------------------------------------------- 4|-------------------------------------------------------- 5|-------------------------------------------------------- 6|-------------------------------------------------------- #| 1|-22b24--22-22-22b24--22-22-22b24-~-~-(22)-- 2|-------------------------------------------- 3|-------------------------------------------- 4|-------------------------------------------- 5|-------------------------------------------- 6|-------------------------------------------- #| 1|-------------------------------------------------------- 2|-10p8p7------------------------------------------------- 3|--------9--9p7------------------------------------------ 4|---------------9--9p7-5--7b9---5------------------------ 5|----------------------------------7---(7)-~-~-~----5h7-- 6|------------------------------------------w/bar--------- #| 1|------------------------------------------------------ 2|------------------------------------------------------ 3|------------------------------------------------------ 4|------------------------------------------------------ 5|-4---(4)-~-~-~-~-----0----2--\1/-\1/-\1/-\1/-\1/-\1/-- 6|------------------------------------------------------ +12 Prayer Intro: #| 1|-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 2|-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 3|-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 4|------------5---------------------------5---------------------------5---------------------------5---------------------------5---------------------------5---------------------------5---------------------------5--------------- 5|--------7---------------7-----------7---------------7-----------7---------------7-----------7---------------7-----------7---------------7-----------7---------------7-----------7---------------7-----------7---------------7--- 6|----0-----------6---5-----------0-----------6---5-----------0-----------6---5-----------0-----------6---5-----------0-----------6---5-----------0-----------6---5-----------0-----------6---5-----------0-----------6---5------- +13 Bridge: #| PM--------------------------- PM--------------------------- 1|------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ 2|------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ 3|---------2---------------------2---------------------2----------------------2----------------------2---------------------2---------------------------------------------------------------- 4|-----4---------------------4---------------------4----------------------4----------------------4---------------------4-------------------------------------------------------------------- 5|-------------3---2-----------------3---2-----------------3---2------------------3---2------------------3---2-----------------3---2-----4---4---4---4---4---2---3---4---------------------- 6|--2---------------------2---------------------2----------------------2----------------------2---------------------2--------------------2---2---2---2---2---0---1---2---------------------- +14 Chorus Fill: #| PM------------ PM------------ 1|-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 2|-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 3|----------------------------------------------------------------2--------------------------------------------------------------------------------------------------------------2------ 4|------5---4---------5---4---------5---4---------5---2---5---2-------2--------5---4-----------------------------------5---4---------5---4---------5---4---------5---2---5---2-------2-- 5|--4---3---2-----4---3---2-----4---3---2----2-----------------------------4---3---2-----2-------------------------4---3---2-----4---3---2-----4---3---2----2--------------------------- 6|--2-------------2-------------2------------0-----------------------------2-------------0-------------------------2-------------2-------------2------------0--------------------------- #| PM----------- PM----------- 1|---------------------------------------------------------------------------- 2|---------------------------------------------------------------------------- 3|------------------------------------2--------------------------------------- 4|------5---4---------5---2---5---2-------2----------------------------------- 5|--4---3---2-----2----------------------------5-------5-------4---5---5--2--- 6|--2-------------0----------------------------3---0---3---0---2---3---3--0--- +15 Rhythm Fill 2: #| sl V sl V BOOOM! sl V sl V sl V sl V sl V PM------------------- 1|---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 2|---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 3|---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 4|---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 5|--2---2----/7-------------2---2----/7-------------2---2----/7-------------2---2----/7-------------2---2----/7-------------2---2----/7-------------2---2----/7--------------5-------5-------4---5---4------ 6|--0---0---------6---5-----0---0---------6---5-----0---0---------6---5-----0---0---------6---5-----0---0---------6---5-----0---0---------6---5-----0---0---------6---5------3---0---3---0---2---3---2------ +16 Outro: #| PM PM--- P PM---------------------- P PM---------------------- P PM---------------------- P 1|-------------------------------------------------------------------------------------------------------------------------------------------- 2|-------------------------------------------------------------------------------------------------------------------------------------------- 3|-------------------------------------------------------------------------------------------------------------------------------------------- 4|-------------------------------------------------------------------------------------------------------------------------------------------- 5|--2-------7-------------------3\2-----------7------------------3\2-----------7------------------3\2-----------7------------------3\2-------- 6|--0---0-------6---5---0---0---1\0---0---0------6---5---0---0---1\0---0---0------6---5---0---0---1\0---0---0------6---5---0---0---1\0-------- #| PM--- PM------- P PM--- PM------- P PM--- PM------- P PM--- PM------- P PM--------------------------- PM--------------------------- PM--------------------------- PM--------------------------- 1|---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 2|---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 3|---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 4|---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 5|----------7------------------3\2-------------7------------------3\2-------------7------------------3\2-------------7------------------3\2-------------7-------------------------------7-------------------------------7-------------------------------7--------------------------- 6|--0---0------6---0---0---0---1\0-----0---0------6---0---0---0---1\0-----0---0------6---0---0---0---1\0-----0---0------6---0---0---0---1\0-----0---0-------0---0---0---0---0---0---0-------0---0---0---0---0---0---0-------0---0---0---0---0---0---0-------0---0---0---0---0------- #| PM------------------------------- 1|---------------------------------------------------------------------------- 2|---------------------------------------------------------------------------- 3|---------------------------------------------------------------------------- 4|---------------------------------------------------------------------------- 5|---------------------------------------------------------------------------- 6|--0---0---0---0---0---0---0---0---0----------------------------------------- [/cc] Note that I repeated sections where it was needed and evened out all the whitespace in regards to PalmMuting, slide, etc notations. I also created a tagging system for both what "part" we were on as well as the sequence of that part (really important for re-ordering data in a viz, especially when you have repeating "parts" that may or may not be EXACTLY the same). Which made things slightly more complicated than I anticipated, but not much. The cool thing about sequencing LINEAR rhythm parts (no multi-part overlapping yet, including solos) is that you can build Gantt charts out of it - and they actually make sense from a arrangement perspective. My Python way of converting this into a table was to use multiple dictionaries and be very conscience of column number and "line type" so they can iterated back through at the end and have the same orientation, string-wise. There are probably better ways to do this (ones that have more fault-tolerance as far as whitespace goes, etc), but this was the fastest way I could think of - and it only came out to around ~130 lines (and is already fast as hell). [cc lang="python"] import requests, pprint, json, pymssql, psutil, urllib import time, os, string, sys, time import pymssql mssql_db = pymssql.connect(host='localhost:1450', user='sa', password='****', database='FretLogic') mssql_cursor = mssql_db.cursor() pp = pprint.PrettyPrinter(indent=3)

For converting WELL FORMATTED (FULL) tablature to MSSQL Server Tables for later analysis...

f = open('sandmantab-modded.txt') line = f.readline() PMfretlogic = dict() E1fretlogic = dict() B2fretlogic = dict() G3fretlogic = dict() D4fretlogic = dict() A5fretlogic = dict() E6fretlogic = dict() PRTfretlogic = dict() POfretlogic = dict() part_type = ' ' nummPM = 0 nummE1 = 0 nummB2 = 0 nummG3 = 0 nummD4 = 0 nummA5 = 0 nummE6 = 0 for lineno, linestr in enumerate(f): print "line number: " + str(lineno) + ": " + linestr.rstrip() rowtype = linestr[0] #what string, what type of data print rowtype if rowtype == '+': part_type = str(linestr.rstrip()).replace('+','').replace(':','') part_order = str(part_type[0])+str(part_type[1]) print part_order part_type = part_type[2:] print part_type if rowtype == '?': #grab song data from ?string|shit ##Artist|Song|Album|link artist_data = str(linestr.rstrip()).replace('?','') artist = artist_data.split('|', 1)[0] song = artist_data.split('|', 2)[1] album = artist_data.split('|', 3)[2] links = artist_data.split('|', 4)[3] #print part_type for colno, linecol in enumerate(linestr): #print "line number: " + str(lineno) + " col number: " + str(colno) + ": " + linecol.rstrip() if rowtype == '#': #'PALM MUTER line' if linecol <> '|': PMfretlogic[nummPM] = str(linecol).replace("\n",'') PRTfretlogic[nummPM] = str(part_type) POfretlogic[nummPM] = str(part_order) nummPM = nummPM + 1 elif rowtype == '1': #'1E' if linecol <> '|': E1fretlogic[nummE1] = str(linecol).replace("\n",'') PRTfretlogic[nummE1] = str(part_type) POfretlogic[nummE1] = str(part_order) nummE1 = nummE1 + 1 elif rowtype == '2': #'2B' if linecol <> '|': B2fretlogic[nummB2] = str(linecol).replace("\n",'') PRTfretlogic[nummB2] = str(part_type) POfretlogic[nummB2] = str(part_order) nummB2 = nummB2 + 1 elif rowtype == '3': #'3G' if linecol <> '|': G3fretlogic[nummG3] = str(linecol).replace("\n",'') PRTfretlogic[nummG3] = str(part_type) POfretlogic[nummG3] = str(part_order) nummG3 = nummG3 + 1 elif rowtype == '4': #'4D' if linecol <> '|': D4fretlogic[nummD4] = str(linecol).replace("\n",'') PRTfretlogic[nummD4] = str(part_type) POfretlogic[nummD4] = str(part_order) nummD4 = nummD4 + 1 elif rowtype == '5': #'5A' if linecol <> '|': A5fretlogic[nummA5] = str(linecol).replace("\n",'') PRTfretlogic[nummA5] = str(part_type) POfretlogic[nummA5] = str(part_order) nummA5 = nummA5 + 1 elif rowtype == '6': #'6E' if linecol <> '|': E6fretlogic[nummE6] = str(linecol).replace("\n",'') PRTfretlogic[nummE6] = str(part_type) POfretlogic[nummE6] = str(part_order) nummE6 = nummE6 + 1 #pp.pprint(B2fretlogic) print 'cols ' + str(nummPM) + ' ' + str(nummE1) + ' ' + str(nummB2) + ' ' + str(nummG3) + ' ' + str(nummD4) + ' ' + str(nummA5) + ' ' + str(nummE6) print 'lines ' + str(lineno) for i in range(nummE1): try: if str(E1fretlogic[i]) == '1' and str(B2fretlogic[i]) == '2' and str(G3fretlogic[i]) == '3' and str(D4fretlogic[i]) == '4' and str(A5fretlogic[i]) == '5' and str(E6fretlogic[i]) == '6': pass elif str(E1fretlogic[i]) == '': pass else: print str(i) + '-' +str(artist) + ' ' + str(song) + ' ' + str(album) + ' ' + str(links) + ' ' +str(PRTfretlogic[i]) + ' ' + str(PMfretlogic[i]) + ' ' + str(E1fretlogic[i]) + ' ' + str(B2fretlogic[i]) + ' ' + str(G3fretlogic[i]) + ' ' + str(D4fretlogic[i]) + ' ' + str(A5fretlogic[i]) + ' ' + str(E6fretlogic[i]) mssql_cursor.execute("""insert into FretLogic.dbo.TabData (PickId, Test, Artist, Song, Album, TabLink, Part, PartOrder, PM, E1, B2, G3, D4, A5, E6) values ('""" + str(i) + """', GETDATE(), '""" + str(artist) + """', '""" + str(song) + """', '""" + str(album) + """', '""" + str(links) + """', '""" +str(PRTfretlogic[i]) + """', '""" +str(POfretlogic[i]) + """', '""" + str(PMfretlogic[i]) + """', '""" + str(E1fretlogic[i]) + """', '""" + str(B2fretlogic[i]) + """', '""" + str(G3fretlogic[i]) + """', '""" + str(D4fretlogic[i]) + """', '""" + str(A5fretlogic[i]) + """', '""" + str(E6fretlogic[i]) + """' )""") except: print 'cols ' + str(nummPM) + ' ' + str(nummE1) + ' ' + str(nummB2) + ' ' + str(nummG3) + ' ' + str(nummD4) + ' ' + str(nummA5) + ' ' + str(nummE6) print 'lines ' + str(lineno) print sys.exc_info()[0] #debug for fuckups print sys.exc_info()[1] #debug for fuckups print artist print song print album mssql_cursor.execute("update TabData set Vert = (E1 + CHAR(13) + B2 + CHAR(13) + G3 + CHAR(13) + D4 + CHAR(13) + A5 + CHAR(13) + E6)") mssql_db.commit() f.close() #Let's drink! [/cc]

On my TO DO List:

[unordered_list style="bullet"]

• Actual note lookup (i.e. being able to name chords, E5, and single notes etc)
• much less human intervention required on the source files
• Lyrics as new line in tab reading?
• Some type of 1:1 time references, some permitting

[/unordered_list] Regardless, I'm def going to "viz out" a few more song's off 'The Black Album' just for the hell of it. I think I can make some usability improvements over this one.
